Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

Certificación
CHINA HENGYANG ZK INDUSTRIAL CO., LTD certificaciones
CHINA HENGYANG ZK INDUSTRIAL CO., LTD certificaciones
Comentarios de cliente
buena recomendación misma de la máquina

—— Caroline

máquina agradable, gracias por su ayuda

—— Richard

Su encogimiento frío de EPDM que el tubo es muy bonito, nosotros continuará nuestra cooperación

—— Jenny

Su equipo es muy profesional en industria fría del encogimiento

—— Michelle

Estoy en línea para chatear ahora

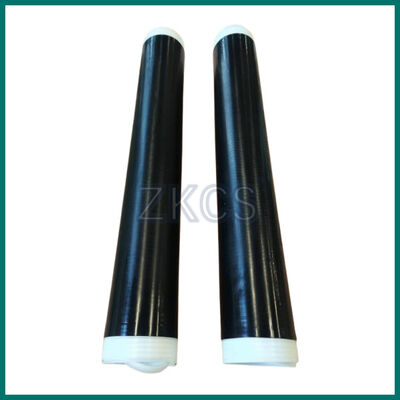

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables
Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

Ampliación de imagen :  Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: ZKCS
Certificación: ROHS
Número de modelo: Personalizado
Pago y Envío Términos:
Cantidad de orden mínima: 1000 piezas
Precio: Negociable
Detalles de empaquetado: 50pcs o 100pcs/carton
Tiempo de entrega: 20-30days después de recibir el depósito del 40%
Condiciones de pago: LC, T/T
Capacidad de la fuente: 100000 unidades/mes

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables

descripción
material: Silicona Color: Negro o gris
Longitud: Personalizado Nombre: Tubo encogido en frío
solicitud: Protección contra aislamiento Nombre del producto: El tubo frío de goma del encogimiento para aísla el alambre
Embalaje: CAJA DE CARTÓN Muestras gratis:
Resaltar:

Long-Term Reliable Insulation

,

All-Weather Performance

,

Outdoor Cable Protection

Product name:

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables


Description:
Equivalent 3M quality Insulation Cold Shrink Splice Sleeves are designed for single and multicore low voltage power cables. the silicone tube shrinks uniformly to form a tight, permanent seal. Its premium silicone material ensures stable performance against moisture, UV exposure, temperature changes, and environmental aging.


Features :
Ideal solution for abandoning cables temporarily or permanently
• Provides environmental sealing and mechanical protection
• Heat and special tools not required
• Simple reliable installation


Applications

  • Outdoor power cable insulation

  • Telecom and fiber optic cable sealing

  • Cable joints, terminals, and connectors

  • Utility, infrastructure, and industrial installations

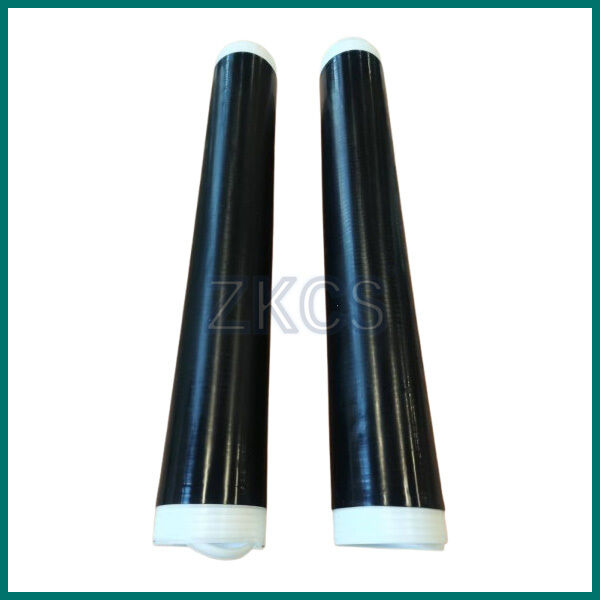

Picture for your reference.

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables 0

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables 1

Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables 2


Silicone Cold Shrink Tube for Telecom & Fiber Optic Cables 3

Introduction:


Equivalent 3M quality Insulation Cold Shrink Splice Sleeve are a series of open-ended, tubular rubber sleeves, which are factory expanded and assembled onto a removable core. They are supplied for field installation in this pre stretched condition. The core is removed after the tube has been positioned for installation over an in-line connection terminal link allowing the tube to shrink and form a waterproof seal. The insulating tube is made of EPDM rubber which contains no chlorides or sulphurs.


Material technical parameters:
No Items Test method Unit Test standard Remarks
1 Hardness (Shore A) GB/T 531.1-2009 Shore A 43±5
2 Tensile strength GB/T 528-2009 Mpa 8±3
3 Break elongation GB/T 528-2009 % 800±200
4 Tear strength GB/T 529-2008 kN/mm 38±5
5 Volume resistivity GB/T 2439-2001 Ω•cm ≥1013
6 dielectric strength GB/T 1695-2005 MV/m ≥18
7 dielectric Constant(50Hz) GB/T 1693-2007 / ≤8
